Part Number: ETI0001-1019 Model: ETI0001-N1A6-KI/2.4
Rugged COTS 2400 VA Rackmount UPS
Navy Standard N1 Configuration, PowerStationÔ Isolated UPS
2400 VA Rugged Rack Mount, Modular Power System
Provides 20 Amps of UPS Output while Only Requiring 20 Amps Input
Maximizes the Amount for UPS Power Utilization from Existing Circuits

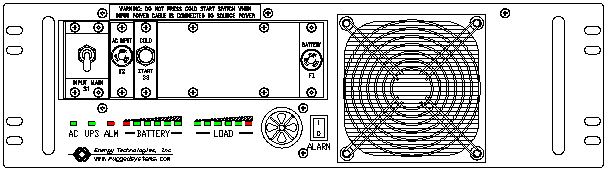

ETI0001-1019 Rugged COTS UPS Standard Front Panel Layout

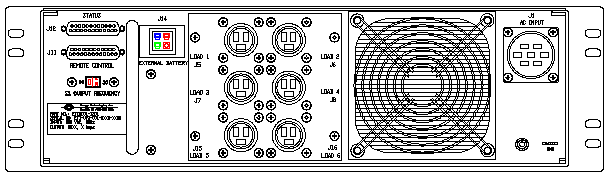

ETI0001-1019 Rugged COTS UPS Standard Rear Panel Layout
The field proven PowerStation™ UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged
construction, compact size and light weight design. These units are equally
suited for use in shipboard, airborne, vehicular, field deployed or fixed
locations with controlled or uncontrolled environments. The "ETI0001-1019"
was initially designed for US Navy shipboard applications, becoming the standard
for several programs.
The heavy-duty chassis occupies only 3U (5.25") of rack space while delivering up to
2400 VA of clean, uninterruptible power. The rounded metal corners and rugged handles, aid
in safe handling. Internally, all major components are well secured and electrically
insulated to prevent damage due to shock and vibration. The optional
mounting kits include flanges that allow use of TAC-4 style shock isolation pins
and bushings used in some racks.
The internal shielded
input transformer provides galvanic isolation with provisions for domestic (115
VAC, CONUS) and optionally for international (230 VAC, OCONUS) input
voltages. For
field deployed scenarios, the Cold Start feature allows the unit to run from its
battery module before external AC is available.
Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. This
unique circuit allows this UPS to deliver up to 20 amps to the load, while
utilizing less than 20 amps from the source, thus maximizing the use of existing
circuits.
The LED arrays
keep the operator informed as to the unit's status including load and battery levels. The
high intensity audible alarm can be heard in high noise environments, yet is easily
adjustable to suit quieter conditions. All controls and protective devices are brought to
the front and rear panels with critical switches or breakers guarded. Further, all front panel
devices are recessed to prevent damage or accidental operation. Various
optional power distribution controls are available which mount on the front panel or
remotely.
The rear panel provides locking connectors for the input and output power. Multiple
input and output power panel options are available. A removable and washable intake air filter and high
capacity stainless steel ball bearing fan provide added protection in both controlled and hostile
environments. The air is drawn from the rear and exhaust air is diverted out the front vent, with alternate
air flow directions optional. The external battery connector allows the safe and easy addition of
extra battery modules without having to shut the unit down.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the Battery
Technology section. The
unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to 60 hertz power. A frequency selection switch
is available for those sites requiring 50 hertz output instead of the standard 60 hertz.
The Status connector provides an interface with
optional computer software providing loss of AC and low battery status as well as remote shut down
capability.
See the Power Distribution Units section for a
listing of stand alone PDUs. See the N5 Series
for a version of this UPS with an integrated PDU and remote control.
Overall, the PowerStation line is uniquely qualified for critical shipboard, vehicle,
airborne or land based systems combining advanced modular design features with highly
reliable construction
Technical Specifications: ETI0001-1019
AC OUTPUT
Output voltage: UPS
120 VAC true sinewave standard, up to 600 VAC optional
Output rating: UPS
2400 VA standard in 3U chassis
0.65 pf standard, optional configurations to 24,000 VA
Non-linear load capacity: UPS
Up to 100% non-linear load capability w/o derating
Output voltage regulation: UPS
± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity: UPS
110% for 10 minutes; 125% for 30 seconds
Harmonic distortion: UPS
Less than 5.0% into 100% non-linear load
Output frequency: UPS
60 or 50 Hz ± 2.5% synchronized to utility
60 or 50 Hz ± 1.0% w/ utility not available 400 or 1000 Hz
output available as an option
Operational status
Status, load and battery level LEDs, w/contacts
Adjustable level,+90 dB audible alarm w/on/off
AC INPUT
Input voltage selection:
Nominal 115 VAC, optional
autoranging input of 85-270 VAC
Input voltage tolerance: UPS
85-135 VAC @ full load without
using battery, to 70 VAC @ 75% load
Input frequency:
From 46 Hz to 70 Hz standard,
optional to 440 Hz
Input power factor:
Better than 99% typically
Input/output isolation:
2500 VA, up to 120 dB common mode, <5
mA
leakage
Input transient suppression:
Complies with IEEE 587 and UL 1449
Input control/protection:
Guarded 2 pole switch w/ fuse, optional breaker
Guarded cold start to turn on w/o AC present
