Part Number: ETI0001-1488
Rugged MilSpec 5000 VA Integrated
120 VAC Power Source with
3-Phase Input and 1-Phase Output
Rackmount UPS and Intelligent
Power Distribution Unit Combination
Lockheed MartinMilitary Power®MilSpec N5
Configuration 5000 VA Rugged Rack Mount
Isolated AC and DC UPS w/ Integrated 8 Circuit, 2 Pole, Intelligent, Solidstate Power Distribution Unit Intelligent SNMP/HTTP Interface

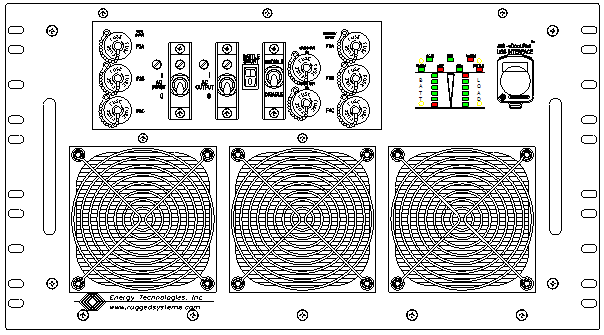

P/N: ETI0001-1488 Rugged MilSpec UPS and
PDU Standard Front
Panel Layout

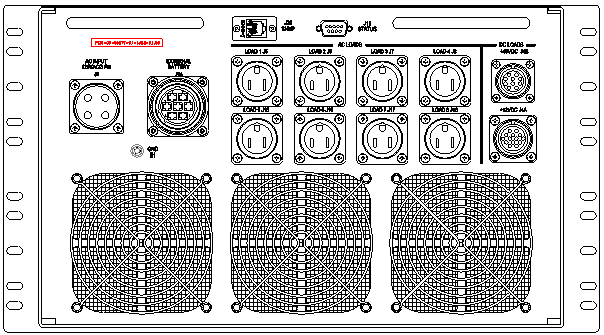

P/N: ETI0001-1488 Rugged MilSpec UPS and
PDU Standard Rear
Panel Layout
The field proven Military Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.
These units are equally suited for use in shipboard, airborne, vehicular, field
deployed or fixed locations with controlled or uncontrolled environments. The ETI0001-1488 was specifically designed for
Lockheed Martin systems
requiring high density power with 3-phase input.
The ETI0001-1488 does not require a separate PDU since the PDU
functions are already integrated into the UPS module. This saves rack space,
cabling and expense while improving overall reliability.
The heavy-duty chassis occupies only 6U (10.5”) of
rack space. The
rounded metal corners and rugged handles, both front and rear, aid in safe
handling. Internally, all major components are well secured and electrically insulated to prevent
damage due to shock and vibration in any axis. These units can be mounted
horizontally or vertically. Optional heavy-duty rack slides provide
easy installation and removal of the unit with full extension.
The internal shielded
input transformer provides galvanic isolation with provisions for nominal 208 VAC, 3-phase input
voltages. Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. The input
circuit breaker and the isolation transformer
provide an isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent. 50
or 400 hertz outputs are available as an option.
The LED
arrays keep the operator informed as to the unit's status including load and
battery levels. The Elapsed
Time Indicator records the number of operational hours for records and
scheduling preventative maintenance of attached equipment. The high intensity audible alarm can be heard in high noise
environments and includes an audible disable switch. All
controls and protective devices are brought to the front and rear panels with critical
switches or circuit breakers having finger guards. Further, all front panel devices are recessed to prevent
damage or accidental operation. The internal intelligent PDU allows control of
the individual output circuits incorporating thermal and interlock interfaces
for additional control and safety, plus Battleshort override. The display and
control panel can be mounted remotely in the rack at eye level, or on the keyboard
console with only a logic level cable connection.
The rear panel provides locking MS threaded metal shell
connectors for the input and output power with various optional configurations
available. The Status connector provides an
interface with optional computer software providing loss of AC and low battery status as well as
remote shut down capability. The UPS Remote Control and the PDU Remote Control connectors
provide an
interface to optional remote display/control panels.
This
unit draws air through the front air filter and exhausts out the rear vent into the rack.
This allows the unit to be used in negative or neutral pressure racks. For
positive pressure racks, rear to front or rear to side versions are available. The removable and washable metal screen air filters and high capacity
stainless steel ball bearing fans provide
added protection in both controlled and hostile environments.
The
ETI0001-1488 has the added benefit of having a
field replaceable battery via a rear drawout battery module. The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the Battery
Technology section.
See the Power Distribution Units section for a listing of
stand alone PDUs. See the N3 Series UPS section for UPS without
the integrated PDU and remote control.
Overall, the PowerStation line is uniquely qualified for critical shipboard,
vehicle, airborne or land based systems combining advanced modular design
features with highly reliable construction.
Technical Specifications:
P/N: ETI0001-1488
AC OUTPUT
Output voltage:
120 VAC true sinewave standard
Output rating: UPS
5000 VA standard in
6U chassis x 23.5" deep
0.65-0.75 pf standard
Non-linear load capacity:
Up to 100% non-linear load capability w/o derating
Output voltage regulation: UPS
± 3.0% static regulation of nominal
± 4.0% dynamic (0 to 50% load step)
Overload surge capacity:
110% for 10 minutes; 125% for 30 seconds
Harmonic distortion:
Less than 5.0% into 100% non-linear load
Output frequency: UPS
60 Hz ± 2.5% synchronized to utility
60 Hz ± 1.0% w/ utility not available
50,
400 or 1000 Hz output available as an option
Operational status
AC Input status, UPS operational,
UPS alarm, Battery level, Low battery, Load level, Overload LEDs, Elapsed time hour meter
Alarm contacts for Loss of AC and Low Battery
+90 dB audible alarm with audible on/off switch
AC INPUT
Input voltage:
Nominal
208 VAC L-L, 3-phase
Input voltage tolerance: UPS
148-234 VAC @ full load without
using battery
Input frequency:
From 46 Hz to 70 Hz standard,
optional to 440 Hz
Input power factor:
Better than 99% typically
Input/output isolation:
6000 VA, up to 120 dB common mode, <1.0
mA
leakage
Input transient suppression:
Complies with IEEE 587 and UL 1449
Input control/protection:
Guarded 3 pole 100 G shock rated circuit
breaker (CB1)
plus UPS input fuses (F2A, F2B and F2C)
