The field proven Military Power® UPS line is ideally suited for military, industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design. These units are equally suited for use in shipboard, airborne, vehicular, field deployed or fixed locations with controlled or uncontrolled environments. The ETI0001-2205A3 is being used as the power source for Radar Systems because of the stringent performance and reliability requirements.
The heavy-duty UPS and Battery chasses have rounded metal corners and rugged handles front and rear, aiding in safe handling. Internally, all major components are well secured and electrically insulated to prevent damage due to shock and vibration. The internal intelligent thermal sensors provide monitoring of unit temperatures, with both local and remote Battleshort override capability of thermal shutdown for emergency scenarios. Battleshort can be engaged via a remote contact input or via a software command. When in Battleshort, an audible alarm is sounded and an indicator is lit. The high intensity audible alarm can be heard in high noise environments and includes an audible enable/disable switch.
The internal shielded input transformer provides galvanic isolation with provisions for nominal 208 VAC, 3-phase input voltages. Special EMI/RFI filters and input power factor correction minimize both input current and harmonics. The input circuit breaker and the isolation transformer provide an isolated source for all installations including shipboard systems or overseas locations where phase references and grounding are not consistent. 50 or 400 hertz outputs are available as an option.
The unit can also operate as a frequency converter, taking 46-70 hertz input and converting it to clean, uninterruptible 60 hertz power.

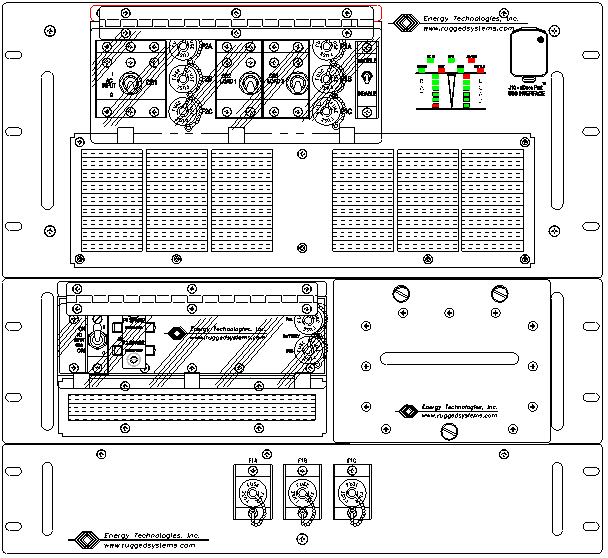

The LED arrays keep the operator informed as to the unit's status including load and battery levels. The high intensity audible alarm can be heard in high noise environments. All controls and protective devices are brought to the front and rear panels with critical switches having finger guards. The front panel also provides easy access to both the AC Input and Battery Input fuses. Coupled with the onboard spare fuses, MTTR is reduced to less than 15 minutes. Further, all front panel devices are recessed to prevent damage or accidental operation. The input circuit breaker and the galvanic isolation transformers all provide a double pole isolated source for all installations including shipboard systems or overseas locations where phase references and grounding are not consistent.

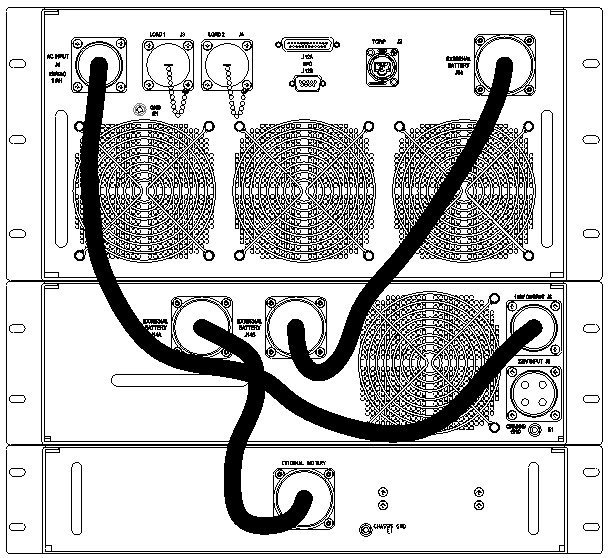

The rear panel provides locking connectors for the input and output power. Removable, washable air filters combined with high capacity stainless steel ball bearing fans provide added protection in both controlled and hostile environments. The exhaust air is diverted out the rear vents, with alternate air flow directions optional. The external battery connector allows the safe and easy addition of the standard or extra battery modules without having to shut the unit down. The batteries are maintenance free with immobilized electrolyte and are constructed of flame retardant materials. For more information, see the Battery Technology section. The Status connector provides an interface with optional computer software providing loss of AC and low battery status as well as remote shut down capability.
See the Power Distribution Units section for a listing of stand alone PDUs. See the N5 Series section for versions of UPS with an integrated PDU and remote control.
Overall, the Military Power line is uniquely qualified for critical shipboard, vehicle, airborne or land based systems combining advanced modular design features with highly reliable construction.
| AC OUTPUT | |
| Output voltage: | 120 VAC true sinewave standard, up to 600 VAC optional |
| Output rating: UPS | 5000 VA 0.8 pf standard |
| Non-linear load capacity: UPS | Up to 100% non-linear load capability w/o derating |
| Output voltage regulation: UPS | ± 3.0% static regulation of nominal ± 4.0% dynamic (0 to 50% load step) |
| Overload surge capacity: UPS | 110% for 10 minutes; 125% for 30 seconds |
| Harmonic distortion: UPS | Less than 5.0% into 100% non-linear load |
| Output frequency: UPS | 60 Hz ± 1.0% independent of input frequency 50, 400 or 1000 Hz output available as an option |
| Operational status |
AC Input status, UPS operational,
UPS alarm, Battery level, Low battery, Load level, Overload, Warm
temperature, Hot temperature, Fan fail and
Battleshort LEDs, Alarm contacts for Loss of AC and Low Battery +90 dB audible alarm with audible on/off switch SNMP/HTTP, Optional Asynchronous serial COM port |
| AC INPUT | |
| Input voltage: | Nominal 208 VAC L-L, 3-phase |
| Input voltage tolerance: UPS | 148-234 VAC @ full load without using battery |
| Input frequency: | From 46 Hz to 70 Hz standard, optional to 440 Hz |
| Input power factor: | Better than 99% typically |
| Input/output isolation: | 6000 VA, up to 120 dB common mode, <1.0 mA leakage |
| Input transient suppression: | Complies with IEEE 587 and UL 1449 |
| Input control/protection: | Guarded 3 pole 100 G shock rated circuit
breaker (CB1) plus UPS input fuses (F2A, F2B and F2C) |
| Input power connections: | MS 3102R-24-22P, 4 pin, locking |
| EXTERNAL BATTERY | |
| External battery type: | Maintenance free immobilized electrolyte, Flame retardant materials (Oxygen Index 28+) |
| External battery life: | Rated for continuous service life of 5 years |
| External DC protection: | Front panel mounted fuses (F1A, F1B and F1C) |
| Battery expansion: | Up to 24 hours w/ Battery Expansion Modules |
| DISTRIBUTION PANEL | |
| Output circuits: | Two AC outputs standard |
| Output control: | Circuit breakers (CB2 and CB3) Remote ON/OFF of each load Battleshort to inhibit shutdown when engaged Remote Emergency Power Off (REPO) |
| Output receptacles: AC output | MS3102R22-2 and MS3102R22-2SW 3-pin locking standard |
| MECHANICAL | |
| Dimensions (H x D x W): UPS Module 3U Battery Module 2U Battery Module |
8.75 (5U) x 23.5 x 19.0 in (222 x 597 x 483 mm) 5.25 (3U) x 23.5 x 19.0 in (133 x 597 x 483 mm) 3.50 (2U) x 23.5 x 19.0 in (89 x 597 x 483 mm) |
| Rack Slide Mount Patterns: | Jonathan, General Devices patterns, others optional |
| Alternate Mounting Options: | Table, Wall, Floor, Portable, Horizontal/Vertical |
| Unit weight: UPS Module 3U Battery/Bypass Module 2U Battery Module |
115 lb. (52 kg) UPS with lift handles front and rear 151 lb. (69 kg) Battery/Bypass with lift handles front and rear 100 lb. (45 kg) Battery with lift handles front and rear |
| Audible noise: | Less than 59 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: | High capacity, positive pressure, forced air |
| Cooling air direction: | Rear intake, exhaust to front, others optional |
| Air intake filter: | Washable metal filter media, others optional |
| ENVIRONMENTAL | |
| Storage temperature: | -40° to 158° F ambient (-40° to 70° C) with fully charged batteries |
| Operating temperature: | -4° to 131° F ambient ( -20° to 55° C), lower/ higher optional |
| Operating humidity: | 0 to 95% relative humidity (non-condensing) |
| Storage elevation: | Up to 45,000 ft (13,716 m) |
| Operating elevation: | Up to 15,000 ft (4,572 m), higher optional |
| STANDARDS | |
| United States: | Meets UL-1778 standard for UPS equipment, MIL STDs 167-1, 454, 810F, 901D Grade A, 1399-300A & 2000 |
| Canada: | CSA C22.2 No. 107 UPS safety requirements |
| EMI Protection: | EMI/RFI FCC Part 15, Class A; EN55022; MIL STD 461E |
| OPTIONAL ACCESSORIES | |
| Autoranging International Input, Emergency Power Off, Elapsed Time Meter, Alternate I/O Configurations, Battery Expansion, Batteryless Operation, Battery Charger/Conditioner, Power Distribution Units, Software Interface, Asynchronous serial COM port, 10BaseT Ethernet SNMP/HTTP port, Transport Cases, Slides and Mounting Kits | |
