Part Number: ETI0003-1070
Rugged Rackmount Power Distribution Unit
with 3 Phase Input / 15 Single Phase Outputs
Designed and built for AP Labs
for Aircraft Use
Rugged PowerÔ ETI0003-1070 Rugged Rack Mount PDU
3 Phase, 20 Amp/Phase 115/200 VAC, 40-440 Hz Input
15 Output Circuits w/ Individual Circuit Breaker Control
All Breakers Rated for 100 G Shock
Individual Clocked MS Output Connectors

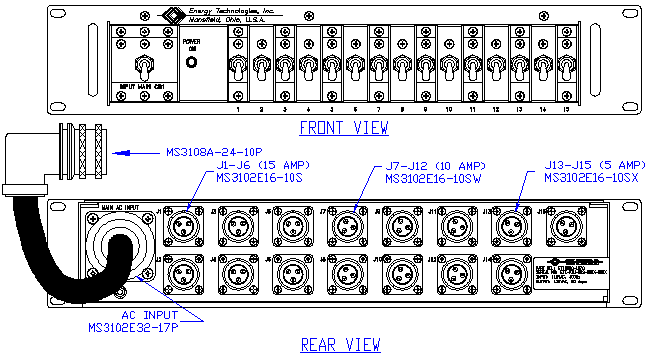

ETI0003-1070 Standard Front and Rear Panel Layout
The field proven Rugged Systems™ Power Distribution Unit (PDU) line is ideally suited for military, industrial and telecommunications
applications requiring a rugged rack, vehicular or field deployable, high reliability, compact size
and light weight design. The heavy-duty chassis occupies only 2U (3.5”) of
rack space while controlling up to 7000 VA of power via fifteen (15) circuit
breaker
controls. The
rounded metal corners aid in safe
handling. Internally, all major components are well secured and electrically
insulated to prevent damage due to shock and vibration. All controls
and protective devices are brought to the front panel. Further, all front panel devices are recessed with critical switches or
breakers guarded to prevent
damage or accidental operation.
The three pole input
breaker provides overload and short circuit protection for the whole unit. The PDU allows control of
the individual output circuits. The
optional Emergency Power Off (EPO) function can remotely open the input circuit breaker.
Each
load is controlled and protected by a 100 G shock rated circuit breakers
avoiding accidental
operation due to shock or vibration. An optional elapsed time hour meter
is available to track the
rack equipment operation for maintenance.
The
rear panel provides locking connectors for the input power and output power. The combination MS input connector and input EMI/RFI filter provides
suppression of conducted EMI. The transient surge suppression helps further protect the connected equipment.
Overall, the Rugged Power product line is uniquely qualified for critical shipboard,
vehicle, airborne or land based systems combining advanced modular design
features with highly reliable construction.
Technical Specifications:
P/N: ETI0003-1070
| AC INPUT FROM RACK |
| PDU input from rack: |
120 VAC nominal, optional up to 600 VAC |
| INPUT MAIN connection: |
MS3102E32-17P, 4
pin locking |
| Input control/protection: |
Guarded 3 pole, 20 amp/phase circuit breaker |
| Input power indicator: |
Green neon lamp |
| POWER DISTRIBUTION |
| PDU output voltage to loads: |
Same as input from rack |
| Output rating to loads: |
Limited to lesser of 15 amps/load or
60 amps
total |
| Output circuits: |
15 controlled outputs w/1 pole circuit
breakers |
| LOADs (J1-J15) |
MS3102E16-10S, -10SW, -10SX, 3
pin locking |
| MECHANICAL |
| Dimensions ( H x D x W ): |
3.5 (2U) x 15.0 x 19.0 in (89x381x483mm) |
| Rack Slide Mount Patterns: |
Slides or rear support mounting brackets |
| Alternate Mounting Options: |
Table, Wall, Floor, Portable, Horizontal/Vertical |
| Shipping weight: |
20 lb. (9.1 kg) with lift handles front |
| Audible noise: |
Less than 47 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: |
Convection cooling |
| ENVIRONMENTAL |
| Storage temperature: |
-13° to 140° F ambient (-25° to 60° C ) |
| Operating temperature: |
32° to 122° F ambient (0° to 50° C ),
higher optional |
| Operating humidity: |
0 to 95% relative humidity (non-condensing) |
| Operating elevation: |
Up to 15,000 ft (4,572 m), higher optionally |
| STANDARDS |
| United States: |
Meets UL-1778 standard,
MIL STDs 901, 167 & 1399 Shock/Vib/Electrical |
| Canada: |
CSA C22.2 No. 107 safety requirements |
| EMI Protection: |
EMI/RFI FCC, Class B, MIL STDs
461 |
| OPTIONAL ACCESSORIES |
| |
Dual Source Input, Emergency
Power Off, EMI Insertion Loss
Filters, Elapsed Time Meter, Auxiliary DC Power Supply,
Transient Surge Suppression, Load Sequencing |
